24mm Customized 100mm Shank Length Ball Carbide Burrs Double Cut on 1/4" shank

24mm Customized 100mm Shank Length Ball Carbide Burrs Double Cut on 1/4" shank

Nom De Marque:	BABOS
Numéro De Modèle:	Le SD-9
Nombre De Pièces:	20pcs
Prix:	Négociable
Conditions De Paiement:	L / C, D / A, D / P, T / T, Western Union
Capacité à Fournir:	10,0000pcs par mois

Informations détaillées

Description de produit

Informations détaillées

Lieu d'origine:

CHINE

Matériel:

Carbure de tungstène

Forme:

Forme de balle

Diamètre de coupe:

24 mm

Longueur de coupure:

21 mm

Diamètre de la tige:

1/4 "

Durée globale:

124nn

Flute Type:

Coupe à double coupe standard

Adapté à:

Profil de surface d'usinage de la pièce

Application:

Déborder, modeler et terminer

Quantité de package:

1 pcs

Rpm maximale:

50 000

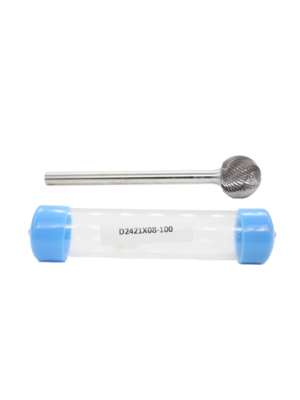

Détails d'emballage:

Boîte en plastique

Description de produit

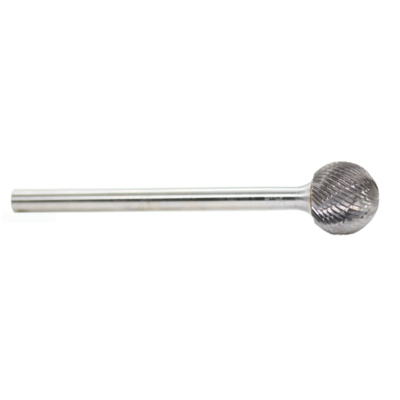

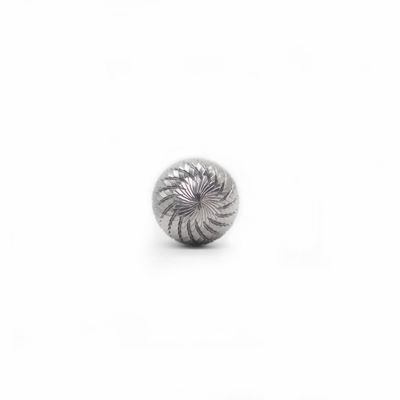

24mm Customized 100mm Shank Length Ball Carbide Burrs Double Cut on 1/4" shank

Type D carbide burr is suitable for machining circular arc profile and removing burrs at welding area, 100mm shank length makes it possible to reach the deeper workpiece areas that are difficult to reach with 45mm standard shank length. Also we provide 150mm, 200mm shank length to meet the different processing needs of customers, please contact us for more detailed information

24mm Customized 100mm Shank Length Ball Carbide Burrs Double Cut on 1/4" shank 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:24mm

Length of Flute: 21mm

Shank Diameter: 6mm

OAL: 121mm

Cut Type: Standard Double Cut

Other Available Sizes Related to Type D Ball Shape Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	2	1.8	38	D0202	Solid
	2.5	2.3	38	D2525	Solid
	3	2.5	38	D0325	Solid
	4	3	41	D0403	Brazed
	5	4	42	D0504	Brazed
	6	5	43	D0605	Brazed
6	6	5	50	D0605	Brazed
	8	7	52	D0807	Brazed
	10	9	54	D1009	Brazed
	12	10	55	D1210	Brazed
	16	14	59	D1614	Brazed
	19	18	63	D1918	Brazed
	25	21	66	D2521	Brazed
8	12	10	56	D1210	Brazed
	16	14	59	D1614	Brazed
	19	18	63	D1918	Brazed
	25	21	66	D2521	Brazed
Inch Standard
1/8''	1/8"	1/8"	1-1/2"	SD-42	Solid
	3/16"	5/32"	1-1/2"	SD-53	Brazed
	1/4"	7/32"	1-3/4"	SD-51	Brazed
1/4''	3/16"	1/8"	2''	SD-14	Solid
	1/4"	7/32"	2''	SD-1	Solid
	5/16"	1/4"	2"	SD-2	Brazed
	3/8"	5/16"	2-1/16"	SD-3	Brazed
	7/16"	3/8"	2-1/7"	SD-4	Brazed
	1/2"	7/16"	2-1/5"	SD-5	Brazed
	5/8"	9/16"	2-1/3"	SD-6	Brazed
	3/4"	11/16"	2-4/9"	SD-7	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type D burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
